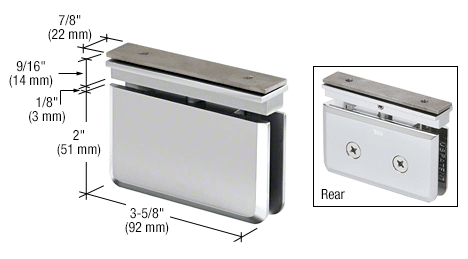

CRL Chrome Senior Prima 06 Series EZ-Adjust Top Mount Hinge - SRPPH06CH
The CRL EZ-Adjust Senior Prima Series of professional hinges is able to accommodate 1/2 inch (12 millimeter) thick tempered safety glass. Advantages of the EZ-Adjust Top Mount Senior Prima Hinges include the fact that they can be adjusted horizontally (side-to-side) after installation into the EZ-Adjust Header System without any drilling or holes. The majority of the glass weight is carried on the bottom hinge, giving you the ability to inset from the wall, enabling clearance for towel bars and other projections. These Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Pivot Pin: Optional Pivot Pins (Cat. No. SRP1VP1N) designed for the Senior Prima Series, are for 1/2 inch (12.7 millimeter) Thick Glass and can be ordered separately. They are not included with the hinge. The 5 Degree Offset Pivot Pins are sold as a set. One for the top hinge and one for the bottom hinge. If using the Optional Pivot Pin, contact our Shower Door Technical Sales at (800) 421-6144 in the U.S., (877) 421-6144 from Canada, or (323) 588-1281 (International), and ask for extension 7740, or online here. Using two hinges with 1/2 inch glass (12 millimeter) the hinge will hold up to 145 pounds (6 kilograms) with a maximum width of 36 inches (914 millimeters). Specifications:
Glass Thickness: 1/2 inch (12 millimeter) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs Construction: Solid Brass Hinge Swings: Full rotation Closing Type: Self-Centering when within 15 Degrees of closed position Cut-Out Required Includes: One Hinge, EZ-Adjust Adaptor, Gaskets, Screws and Template
Custom finishes are available on request. For more information contact CRL Shower Door Technical Sales at (800) 421-6144 in the U.S., (877) 421-6144 from Canada, or (323) 588-1281 (International), and ask for extension 7740, or online here.
